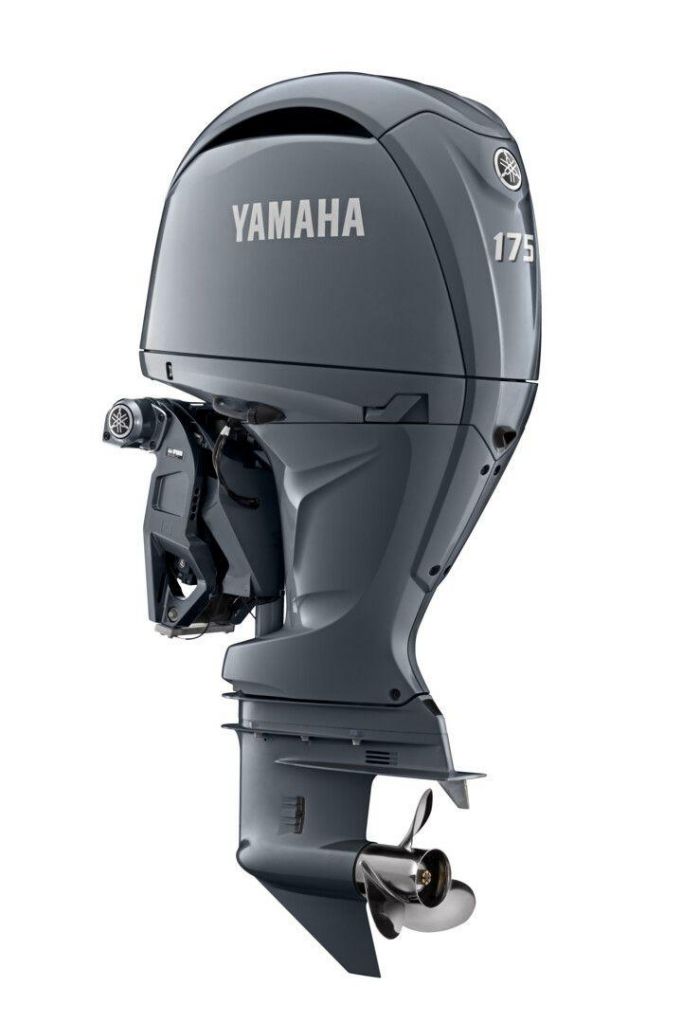

F175LB Yamaha 4 Stroke 175hp Long Shaft, Electric Start, Power Trim & Tilt OUTBOARD FOR SALE
Yamaha’s popular and proven range of F175 Digital and Mechanical Control outboards now feature a newly designed look and integrated steering, taking these engines to the next level when it comes to power, reliability and control.

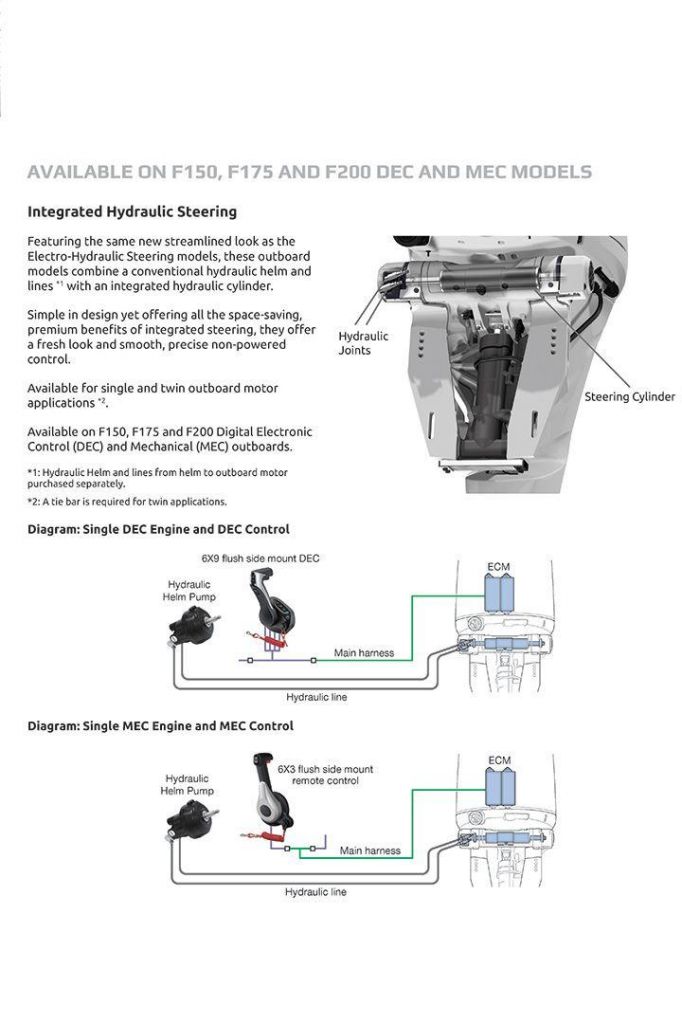

The Integrated Hydraulic Steering system is housed in a neat, sealed cylinder unit, which is built into the transom bracket of the engine, rather than being a third-party bolt-on component. This results in a simple and clean rigging set-up, and an uncluttered bilge and transom area, while exposing less components to the elements for improved long-term durability and reliability.
This new range of four-cylinder integrated steering models are ideal for all applications, including new boat packages, existing boat repowers and multi engine set-ups.
The modernised F175 outboards bring a new level of delight to boating.
Available in:
- F175LB - Integrated Hydraulic Steering(IHS) for Mech Helm, Power Trim, Tilt & Limiter, Transom height - Long
- F175XB - Integrated Hydraulic Steering(IHS) for Mech Helm, Power Trim, Tilt & Limiter, Transom height - Extra-Long
- F175XCB - Integrated Hydraulic Steering(IHS) for Digital Electronic Control(DEC) Helm, TotalTilt with Tilt Limiter, Transom height - Extra-Long
General Features:
- 4-Stroke, 16 Valve DOHC Direct Action In-Line 4
- Integrated Hydraulic Steering(IHS) for Mech Helm
- Power Trim & Tilt with integrated Tilt Limiter
- Direct Injection - higher reliability and increased performance
- High Output Alternator - 50 amps at wide open throttle or 22 amps at 600 RPM
- Offset Crankshaft - More efficient transfer of power
Price includes:
- Outboard
- Integrated Hydraulic Steering(IHS) for Mech Helm
- Integrated Tilt Limiter
- Water test
- Free prop exchange
Price does not include:
- Yamaha Stainless Steel Shift Dampener System(SDS) Prop
- Yamaha 703 Side Control Box and Yamaha looms/wiring
- 2x Yamaha multi function digital gauges(Tacho and Speedo, Fuel level, Battery level, Trim, Hours, Warnings, etc)
- Battery, Steering, Fuel filter, Fuel tank

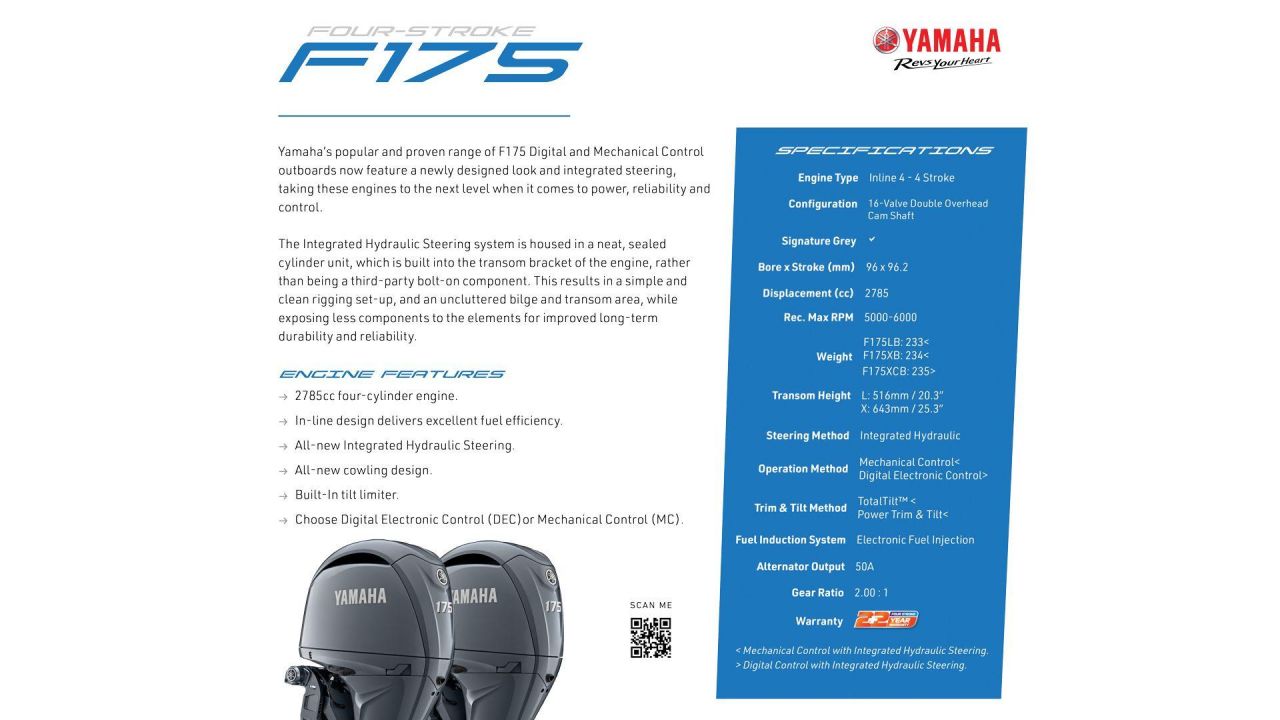

| Specifications | |
|---|---|
| Engine Type |
4-Stroke, 16 Valve DOHC Direct Action In-Line 4 |
| Displacement | 2785 cc |
| Bore x Stroke | 96.0 x 96.2 mm |
| Recommended Max RPM | 5000-6000 |
| Lubrication System | Wet Sump |
| Fuel Management | Electronic Fuel Injection(EFI) |
| Ignition | Transistor Controlled Ignition(TCI) |
| Starter System | Electric |
| Alternator Output | 50A. 50A at wide open throttle or 22A at 600RPM |
| Operation Method | Remote Control(Forward Control) |
| Trim & Tilt Method | Power Trim & Tilt with integrated Tilt Limiter |
| Digital Network Gauges | Optional |
| Gear Ratio | 1.86:1 |
| Dimensions | |
|---|---|
| Transom Length |
|
| Weight |
|
Prices do not include fitting or accessories where applicable.
It is a Yamaha Australia stipulation that all Yamaha Outboards be fitted and personally delivered by the selling Yamaha outboard dealership.
