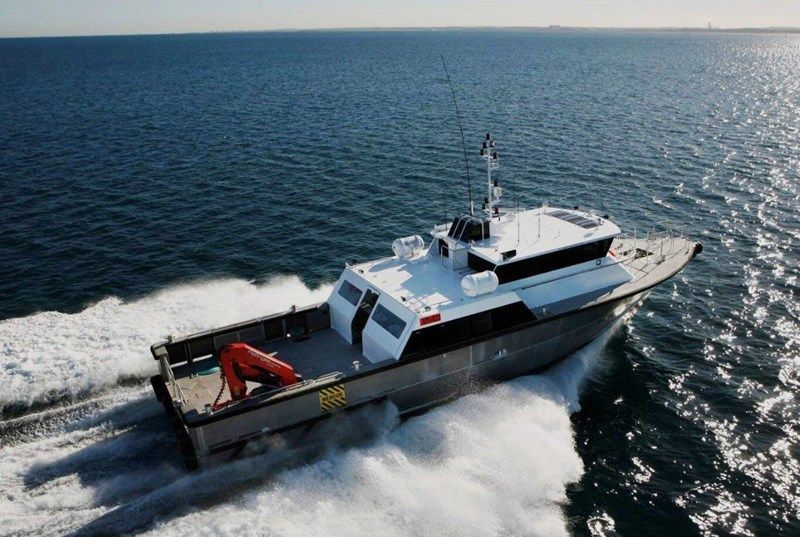

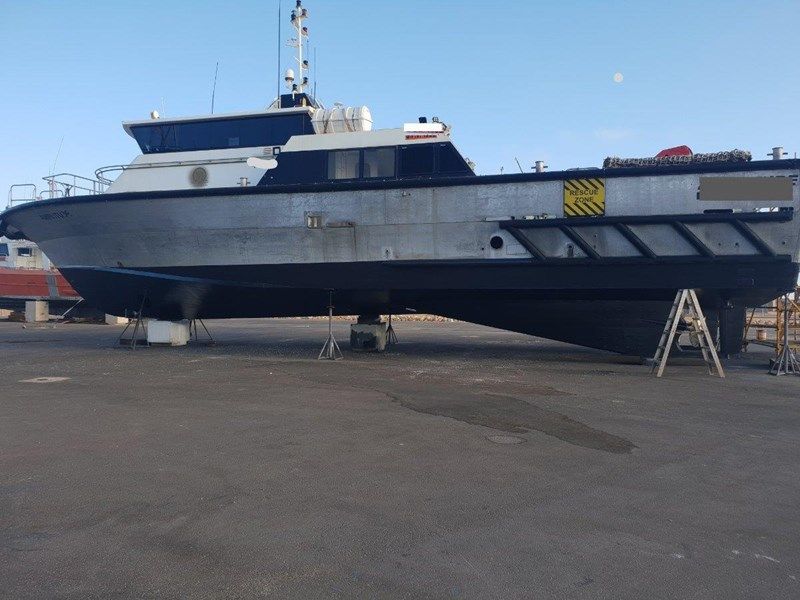

2010 Custom Crew Transfer - Dive - Survey - Work Vessel

THIS VESSEL IS NOT FOR SALE - PLEASE DO NOT ASK FOR A PRICE TO PURCHASE - IT IS ONLY AVAILABLE FOR FOR HIRE OR CHARTER.

22M CREW TRANSFER WORK VESSEL


K E YF E A T U R E S
Air conditioned crew transfer lounge
Bow thruster
Comfortable accommodation
Overhead observation windows at helm
Twin skeg

V E S S E L A P P L I C A T I O N S
Crew transfers
Chase vessel
Construction maintenance
Dive support
Navigation aid maintenance Search & rescue
Security patrol
Survey support

M A I NP A R T I C U L A R S :
Builder:SBF Ship Builder Fremantle
Design:Semi planning reverse chine mono hull
Construction:Aluminum
L. O. A:22.31
Waterline length:19.90m
Beam:6.00m
Draft:1. 80m
Displacement:Refer to stability booklet
Transport:Under own power

P R I N C I P A L P A R T I C U L A R S :
Flag:Australian, Dept of Transport W. A.
Year of Build:2010
Place of build:Fremantle W. A.
Class notation:N. S. C. V Code, 1B and 2B
1B survey:200nm-safe anchorage
2B survey200nm from safe anchorage
1B survey35 Pax + 4 Crew unberthed
2B survey6 Pax + 4 Crew berthed
M & H No:6607
S. P. V. No:1022
Call sign:VHJU

P R O P U L S I O N & M A C H I N E R Y
No. Of mains:2
Engines HP:2 x 1100HP
Fuel Type:Diesel
Make:2 x MAN
Propulsion:2 x fixed pitch propeller
Engine monitoring:Digital
Thruster-bow:1 x 50HP
Thruster-stern:N/A
Steering:H ydraulic

A U X I L I A R Y E N G I N E :
Diesel generator:2 x 35KVA-Sync option
Single phase:Yes
Three phases:Yes
Voltage:415-240
Emergen cy system:24DC Volt


P E R F O R M A N C E :
Economical speed:10 knots
Cruise speed:18 knots
Max speed:22 knots
Fuel economical:40 litres p/hr
Fuel cruising:300 litres p/hr
Fuel max:360 litres p/hr
Range economy:2620 NM- 30% reserve
Range Cruising:665NM-30% reserve
Range max:667NM-30% reserve

B I L G E S Y S T E M S :
Bilge monitoring:Digital
Automatic pumps:Yes
Hand pumps:Yes
Electric pumps:Yes
Mechanical pumps:Yes
Portable salvage pumpsYes

C O M M U N I C A T I O N S :
CCTV:No
Computer:Yes, email facility
Mobile phone:Yes
Inmarsat:Yes, email facility
Intercom:Yes to all cabins & common areas
Satellite phone:Yes
Loud Hailer:Fore and aft
MF/HF radio:Yes
UHF radio:Yes Portable
VHF radio:Yes x 3 and 2 x portable

F E N D E R I N G :
Air craft tyres-bow:Yes
Air craft tyres-stern:Yes
Fixed D-Rubber:Top side and stern 1/4

C O M M O NU S E RF A C I L I T I E S :
Galley:Yes
Laundry:1 x washer & dryer
Mess room:Yes
Showers:2
Toilets:2

C R E W T R A N S F E RP O I N T S :
Push up bow:2050mm
Open transom1350mm
Open transom: step:
Alongside:
Alongside staircase:
Rescue door port side:1250mm
Rescue door port side:1250mm 1250mm

D E C K A R E A :
Deck area:33.17M2 accessible (100%)
Deck dimensions:6.20 x 5.35 metres clear internal-aft-deck
Deck area:19.26M2 accessible (50%)
Deck dimensions:3.60 x 5.35 metres clear-internal-aft deck underneath roof with seats
removed

D E C K & C A R G OC A P A B I L I T I E S :
Deck cargo:1 x 20ft or 2 x 10ft chillers or pallet cages
Deck strength:1.5T M2 (15T max) refer to stability booklet

C A R G OF A S T E N I N G S / C E R T I F I E DS W L P O I N T S :
10ft-sea container footprints:2
20ft-sea container footprints:1
Miscellaneous:12

D E C KE Q U I P M E N T :
Tugger winch:1 x 2500kg
Wire diameter:10mm Dyneema
Length wire:100 metres x 1st layer
Towing pins:Yes-removable

D E C KC R A N E :
Boom:2.0m radius @ 8000kg
Boom:4.5m radius @ 4000kg
Boom:6.0m radius @ 2860kg
Boom:8.0m radius @ 2170kg
Hook SWL:8.0T


N A V I G A T I O N :
A. I. S:Yes, class (B) RX & TX
Auto Pilot:Yes
Clear view:Yes, wipers
DGPS:Yes
Echo Sounder:Yes, dual frequency
GPS:Yes x 2
Helm stations:fore and aft in wheelhouse
Nav lights:standard inc. Towing, red -white-red combination
Nav light monitoring:Digital
Plotter:Yes x 2
Radar:Yes
Radar - APRA:Yes
Radar - MARPA:

L I G H T I N G :
Floods:2 x fwd - 2x aft - port & starboard sides
Search:2 x fwd 360 degrees
Environmental:2 x fwd - 2 x aft and internal

P U B L I C A T I O N S :
To meet class survey & industry requirements:Yes

S A F E T Y G E A R & F I R EE Q U I P :
To meet class survey & industry requirements:Yes

T A N K S :
Fuel Oil:1 x 3000 - 2 x 6000 litres (15000 total)
Fuel transfer:Yes
Sludge:1 x 70 litres via OW separator
Fresh water:1 x 2500 litres
Desal:2500 litres produced per 24 hours
Grey water:1 x 2500 litres
Black water:1 x 2500 litres
FW monitoring:Digital
GW monitoring:Digital
BW monitoring:Digital

A C C O M M O D A T I O N :
Twin berths:3
Quad berths:1
Total bunks:10

M O O NP O O L
Multi beam flange StBD Forward

D I V I N G A C C E S S O R I E S :
Dive ladder:Yes
Decompression chamber:No, able to accommodate a 20ft sea container

T E N D E R / F R C :
Licensed to carry:6
Construction:HDPE
L. O. A:5m
Beam:2.4m
No. Of engines:1
Engines HP:90
Fuel oil:Petrol

Location: WA - *** Western Australia
LENGTH (M): 22.31
